Keyless Entry Door Lock Handle Latch Zinc Alloy Wireless with Keypad Remote Control J8505
Keyless Entry Door Lock Handle Latch Zinc Alloy Wireless with Keypad Remote Control J8505

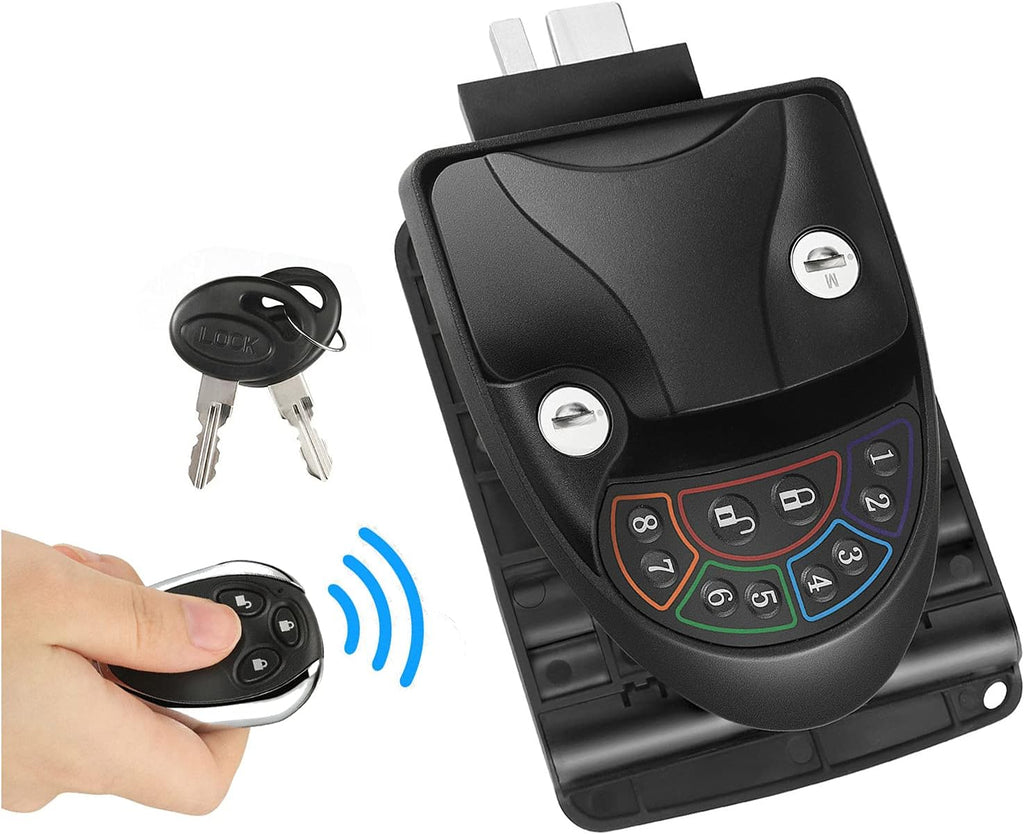

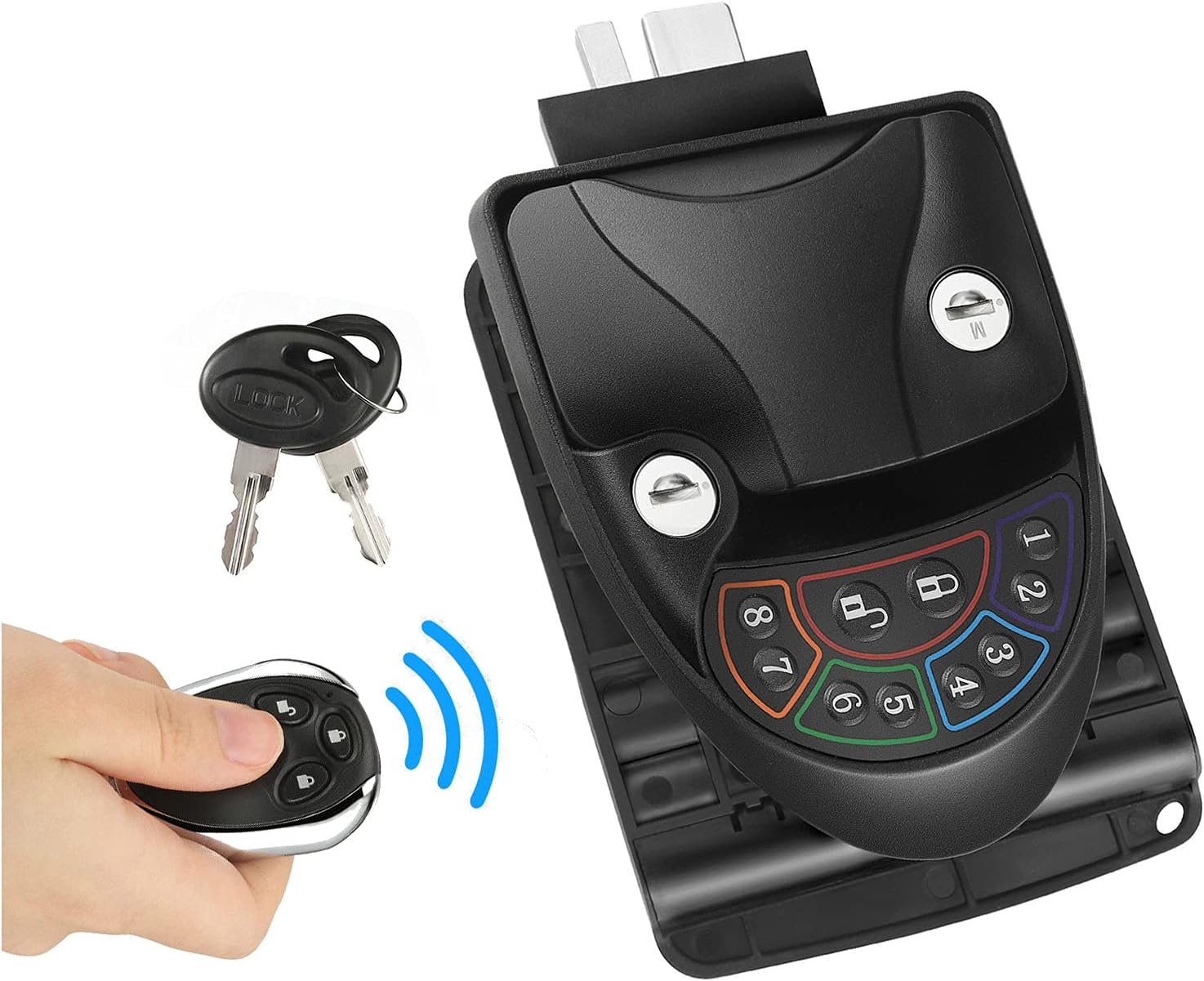

With 3 locking / unlocking options:You can choose to use the keypad password (Max number: 8), wireless remote controller (Up to 20m distance), or the keyless to lock or unlock the handle.Note:This RV door locks have built in deadbolt. It can be opened in the indoor storage box or storage cabinet
All hardware and clear and detailed instructions included, it only takes 10-15mins to install. You can also easy to Program your own code to set a password you want for your keyless entry lock.you can also Reset it if you Forget it.The back-lit keypad allows easy entry at night or in the dark.

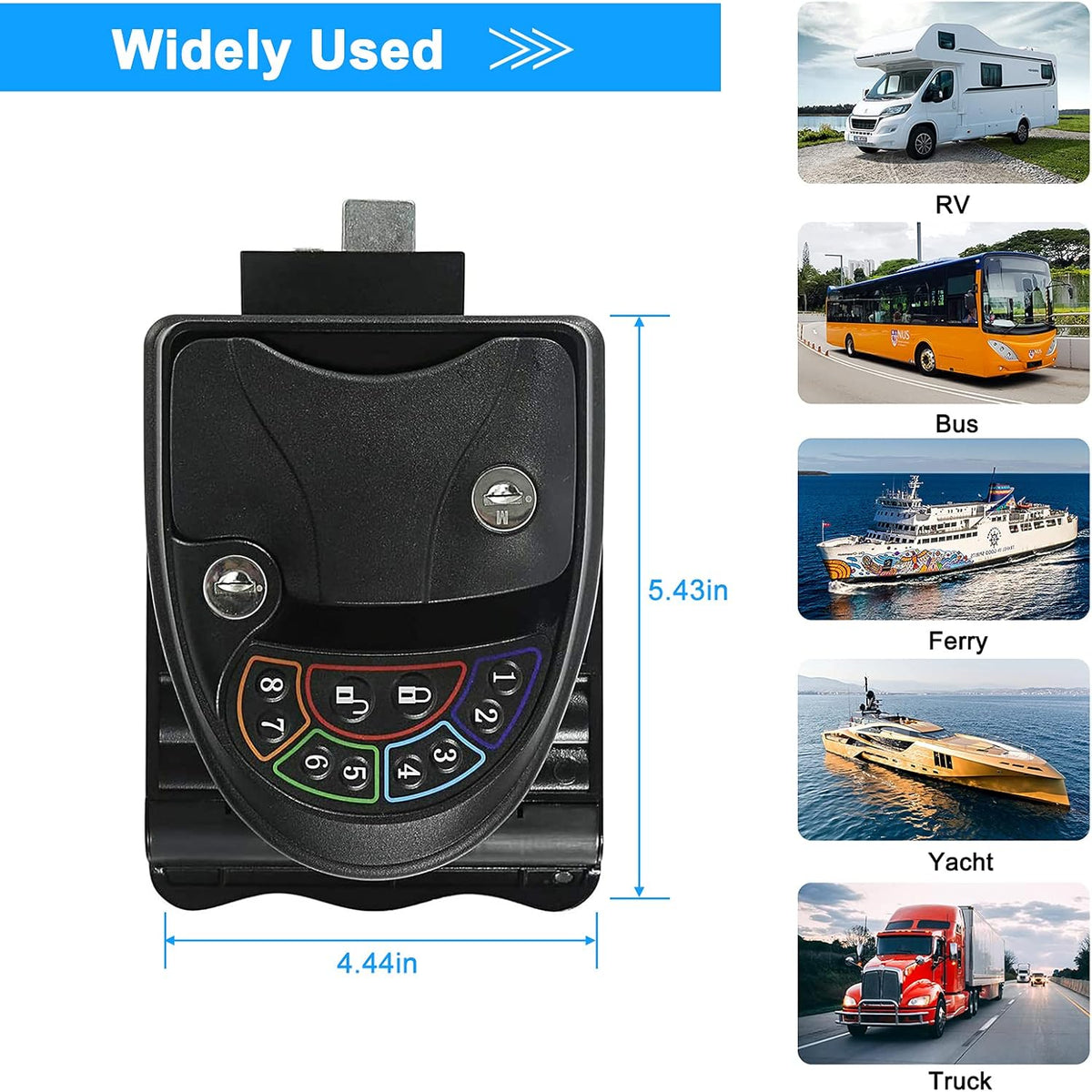

WIDE APPLICATION - Door Thickness 32-38mm(1.25��- 1.49��) ,Door Opening Size:Width:85-87mm(3.35��- 3.42�� ),Height:91-93mm(3.58�� - 3.66��),CHECK DIMENSIONS and latch style with your trailer or RV before purchasing!Suitable for RV, Bus, Yacht, Ferry, Trunk,Travel Trailer, Bumper Pull and Campers etc.

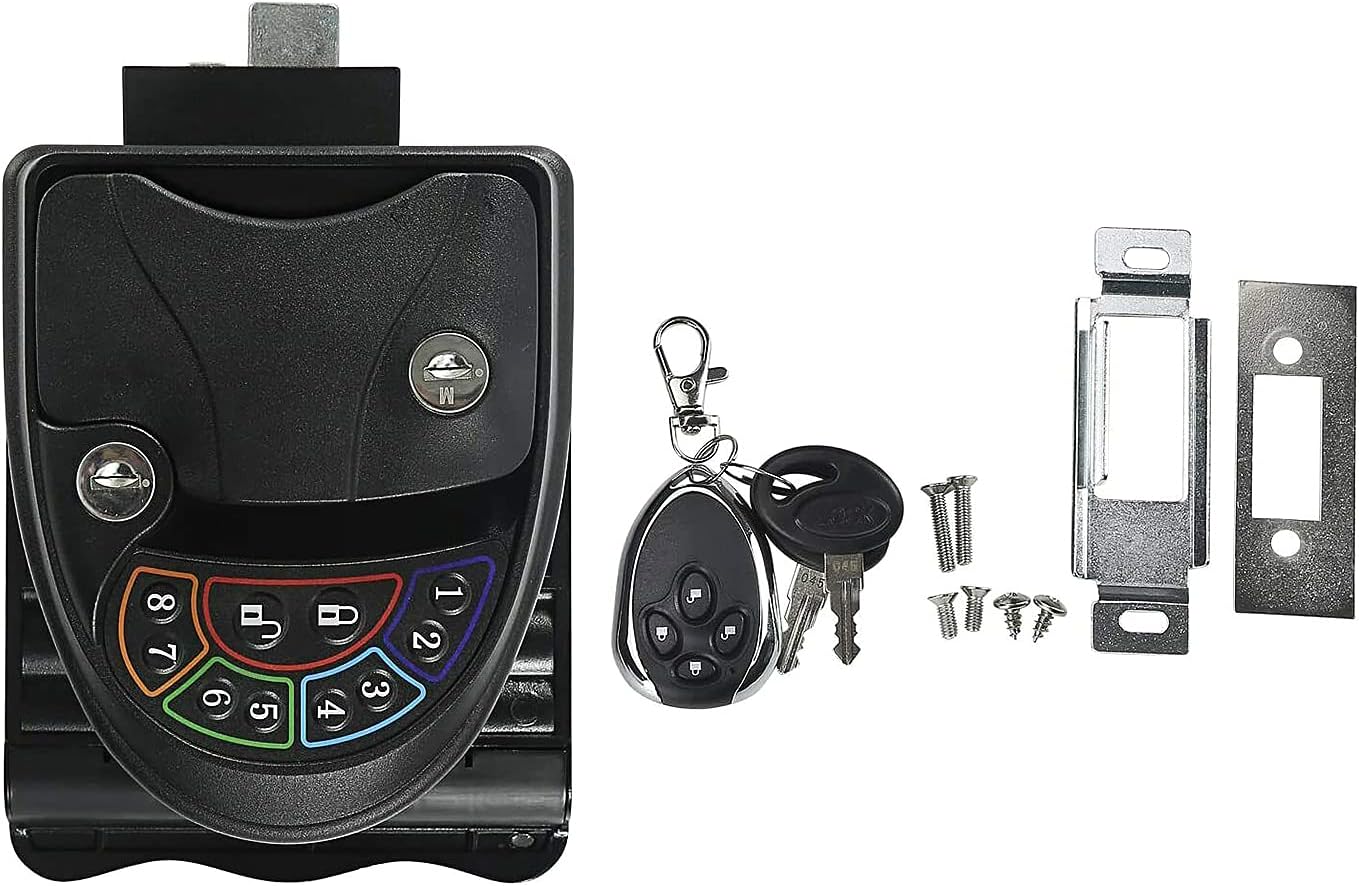

INCLUDES 1x RV Door Lock, 1x Remote Controller, 2x Mechanical Keys, Mounting Hardware & Owner's Manual/Install Guide.
Please contact us before if have any problem.36-MONTH WARRANTY,REPLACEMENT or REFUND.
Specification :
Battery specifications: 4x AA Batteries (not included)
Remote Control Range up to 20m/65FT
Door Thickness: 32-38mm (1.25��- 1.49��)
Height: 91-93mm (3.58�� - 3.65��)
Door Opening Size:Width: 85-87mm (3.35��- 3.45�� )

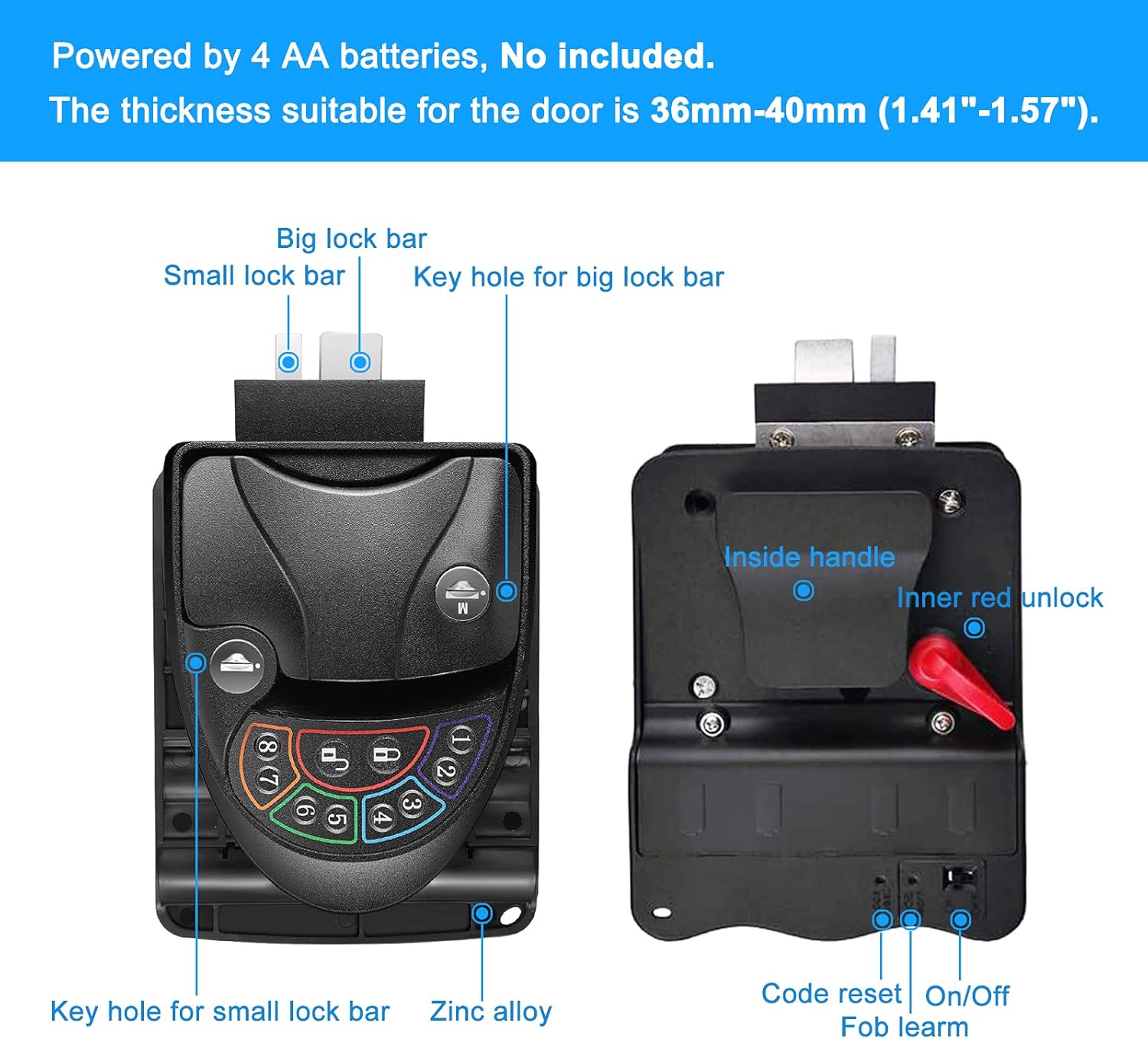

Double Lock tongue design
Steel body Construction
The inside handle it's plastic

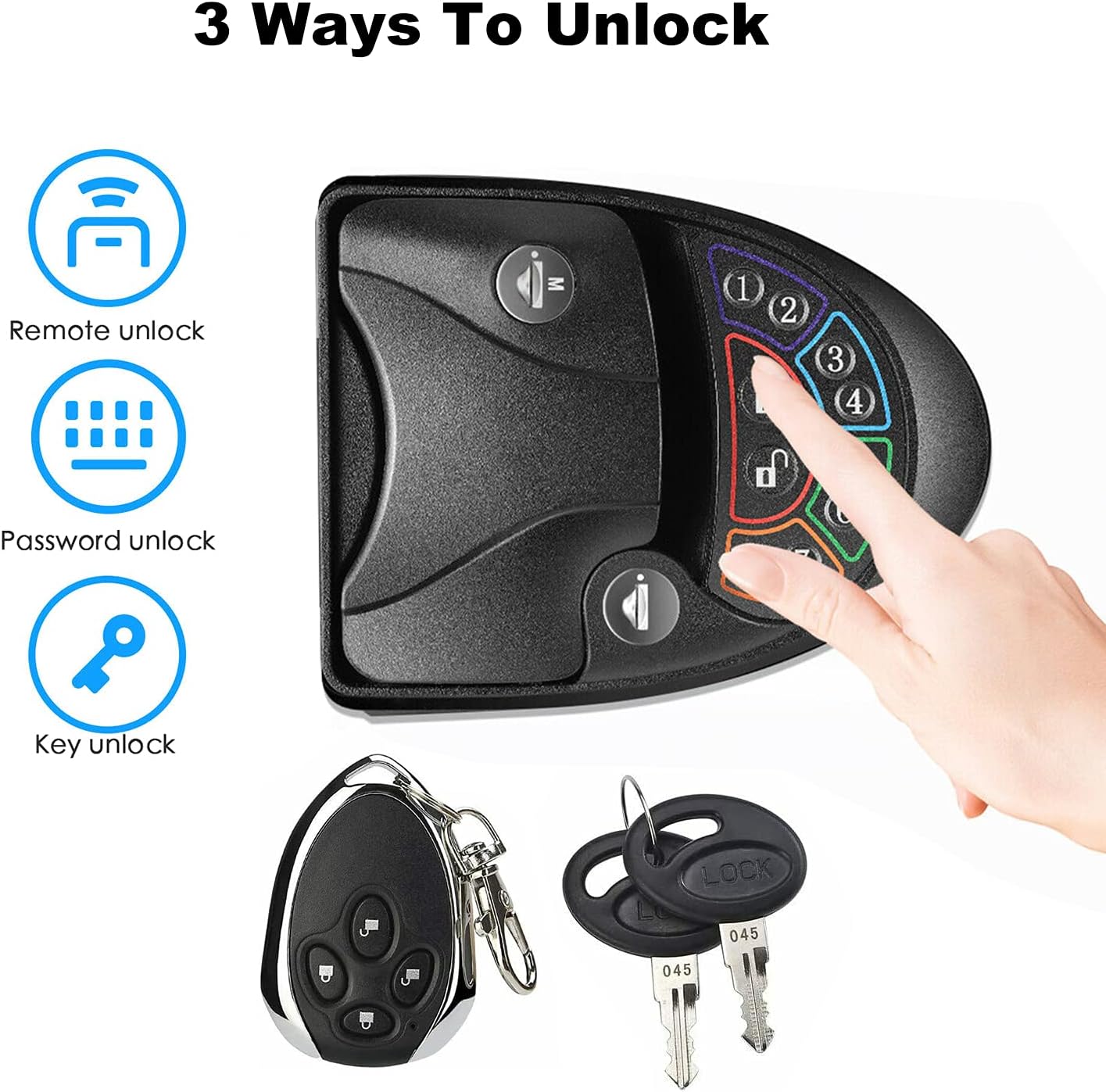

3 Unlocking Methods :Keypad + keyless entry + key.
Reliable security: Dual zinc alloy lock cores, 4 digit password, full metal casing
Durable: strong anti-collision capability, durable metal handle, waterproof, dustproof and rustproof, low voltage alarm
Easy to Change the Password
The Factory Original passward : 1234
Press and hold the number 8 Key
Following the lock button till you hear a sound.
Input Factory original password 1234 and followed by press lock button to confirm.
Enter a new password you like.
Repeat last Step and enter the new password, then press lock button to confirm, the voice coming out showing the new password is set successfully.
Forgot Password Press Code Reset Button
1.If you forget the password,Use a pointing tools to point the 'code rest' button for 5-10 seconds until there is a sound emitted
2.Until you hear a 'click' sound,which means success back to original password
Pair Code with remote control
1.Push the black button on the back is on 'ON' position.
2.Pointing tool to long press the 'FOB learn 'button,(shown in the picture)
3.Then press the lock button on remote control for 2 seconds
4.Until you hear a 'click' sound,which means success in paring
Entry Door Lock Inside Handle Lantch
This door lock can be opened from the inside, you will be able to remove the front portion of the handle.
Note: If the door is hard to shut or will not cloase tightly, simply adjust the strike plate on the jamp side of the door.
